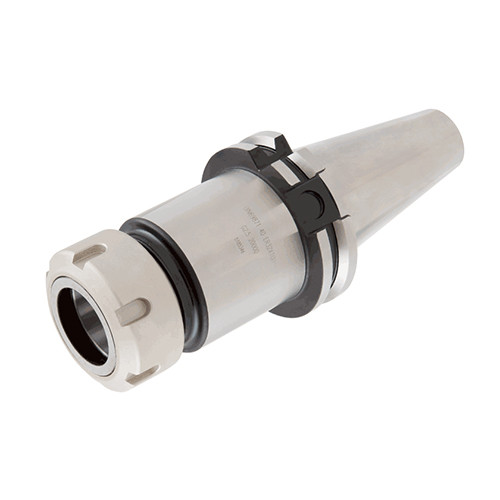

DIN69871 40 ER20X100
DIN 6499 ER collet chucks with a DIN 69871 form ADB taper shanks.

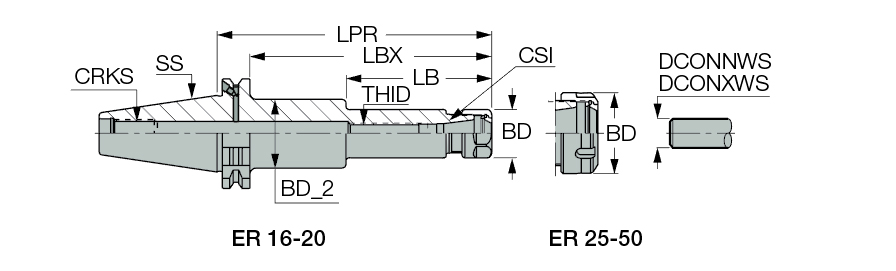

| Shank Size (SS) | 40 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Connection Size (CSI) | ER20 | Measurement Type | Metric |
| Body Diameter (BD) | 34 mm | Body Material | Steel |
| Protruding Length (LPR) | 100 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Tool Type | DIN 69871 | Unit | M |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
Product Features
| Family Description | DIN 6499 ER collet chucks with a DIN 69871 form ADB taper shanks. | FamilyName | DIN69871-ER (form ADB) |
| Remarks | B is the designation for coolant through flange. | BrandName | Iscar |
| COO | India |
Shipping Info
Weight per item
1.2630
Name
Collet Chucks
FamilyName
DIN69871-ER (form ADB)
BrandName
Iscar
