DIN69871 50 ODP16X128

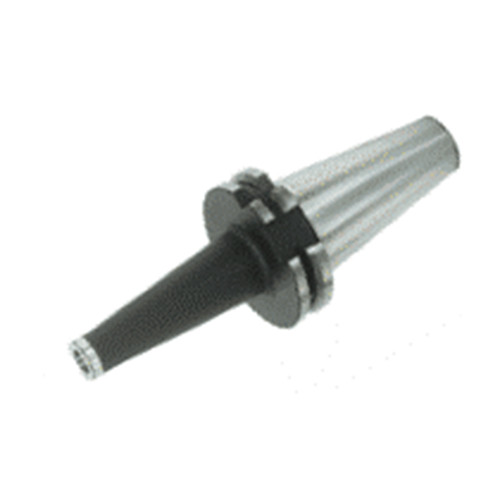

FLEXFIT threaded connection shanks with integral DIN 69871 form ADB taper adaptation.

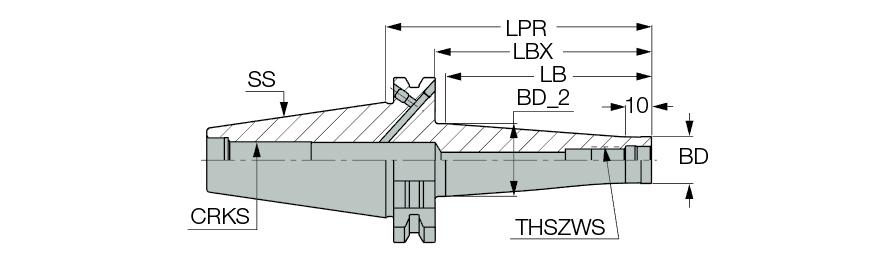

| Shank Size (SS) | 50 | Connection Retention Knob Thread Size (CRKS) | M24 |
| Protruding Length (LPR) | 128 mm | Tool Type | DIN 69871 |
| Body Length (LB) | 100 mm | Measurement Type | Metric |
| Body Diameter (BD) | 40 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M16 | Unit | M |
Product Features
| Family Description | FLEXFIT threaded connection shanks with integral DIN 69871 form ADB taper adaptation. | FamilyName | DIN69871-ODP |
| Remarks | For Adaptation, Click on More Info. | BrandName | Iscar |
| COO | Italy |
Shipping Info
Weight per item
3.3920
Name
Drill Chucks & Adapters
FamilyName
DIN69871-ODP
BrandName
Iscar
