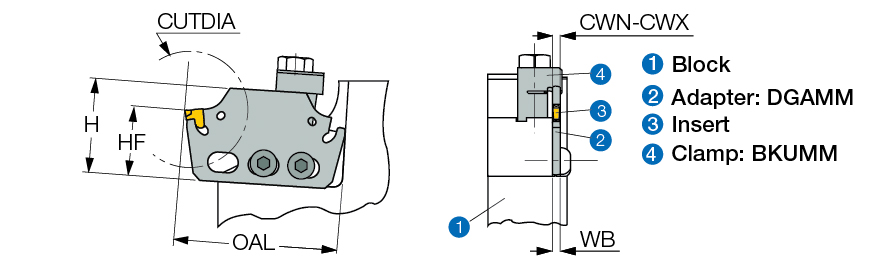

| Shank Height (H) | 1.89″ | Body Material | Steel |
| Body Width (WB) | 0.094″ | Tool Type | Parting & Grooving Tools |
| Cutting Width Minimum (CWN) | 0.11″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.138″ | Tool Assembly Length (LTA) | 3.092″ |
| Overall Length (OAL) | 3.06″ | Unit | I |
| Application | | Ext. Grooving | Parting | |
Product Features

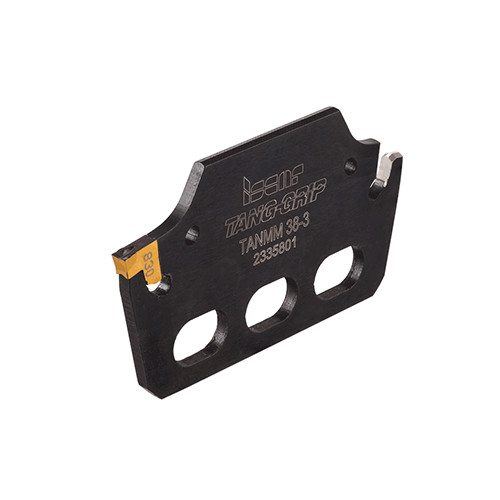

| Family Description | Replacement parting and grooving adapters for TANG-GRIP tangentially clamped inserts | FamilyName | TANMM-ISC2302269 -I |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.181
Name
Parting Off Indexable Holders
FamilyName
TANMM-ISC2302269 -I
BrandName
Iscar
