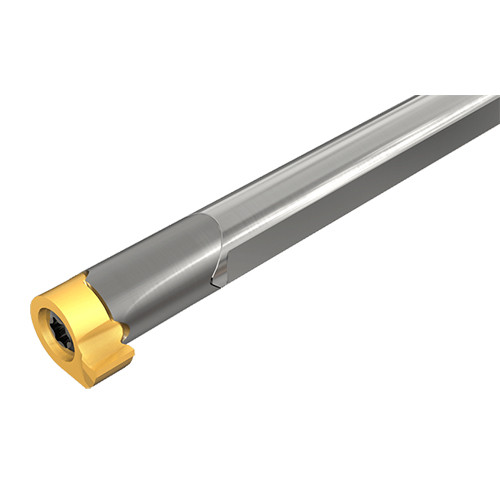

MGCH 08
CHAMGROOVE solid carbide bars for internal grooving, turning and threading, DMIN 8 mm.

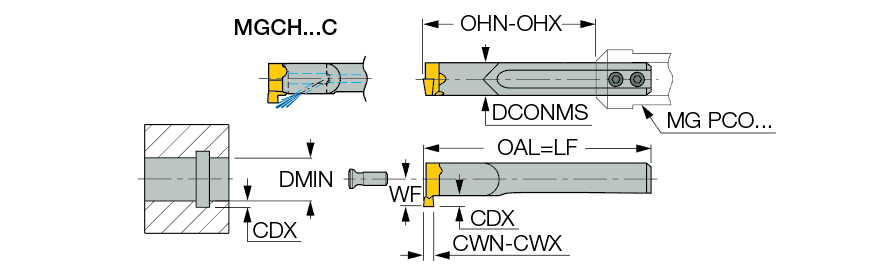

| Cutting Width Minimum (CWN) | 0.5 mm | Body Material | Carbide |
| Cutting Width Maximum (CWX) | 5 mm | Tool Type | Indexable Turn & Groov Tools |
| Overall Length (OAL) | 76 mm | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Unit | M |
| Application | | Int. Back Boring and Profiling | Int. Boring and Profiling | Int. Groove & Turn | Int. Grooving | Threading (Int.) | |
Product Features
| Family Description | CHAMGROOVE solid carbide bars for internal grooving, turning and threading, DMIN 8 mm. | FamilyName | MGCH |
| Remarks | The same tool applies on right and left machining . | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0710
Name
Groove/Turn Indexable Holders
FamilyName
MGCH
BrandName
Iscar
