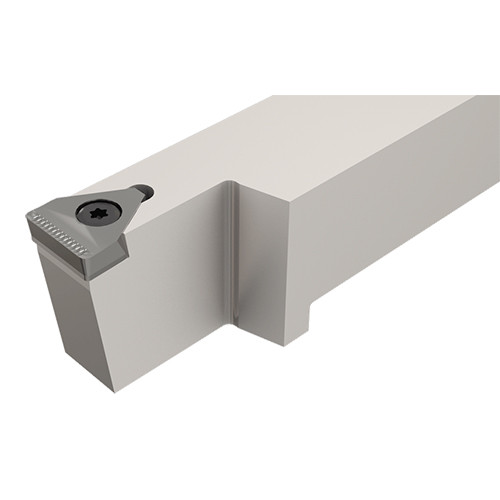

THDL 4040-17T45

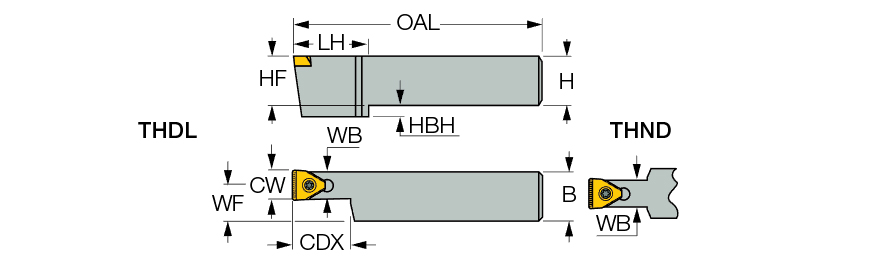

| Cutting Depth Maximum (CDX) | 45 mm | Application | | Ext. Grooving | |
| Shank Height (H) | 40 mm | Body Material | Steel |
| Shank Width (B) | 40 mm | Tool Type | Wide Profiling Tools |
| Body Width (WB) | 15 mm | Measurement Type | Metric |
| Functional Width (WF) | 32.5 mm | Unit | M |
| Overall Length (OAL) | 170 mm |
Product Features
| Family Description | External holders for wide (20 mm) grooving inserts | FamilyName | THDR/L/N-ISC2801681 -M |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
4.140
Name
Groove/Turn Indexable Holders
FamilyName
THDR/L/N-ISC2801681 -M
BrandName
Iscar
