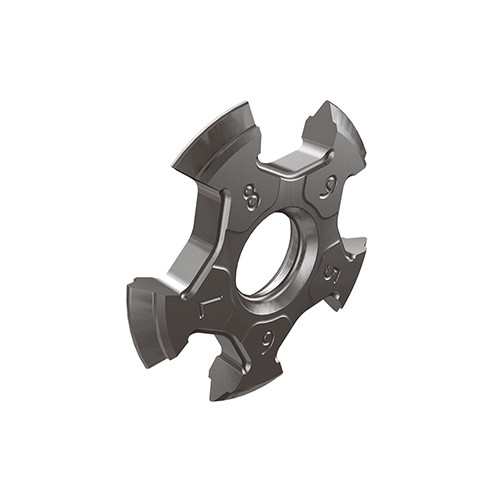

TTG-16E-0.75-ISO IC908
External ISO Metric (DIN13 12-1986 class: 6G), indexable threading inserts with 10 threading corners, for general industry.
| Thread Standard | THFT | | Application | | Threading (Ext.) Groove Turn T | |
| Thread Pitch (TP) | 0.75 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

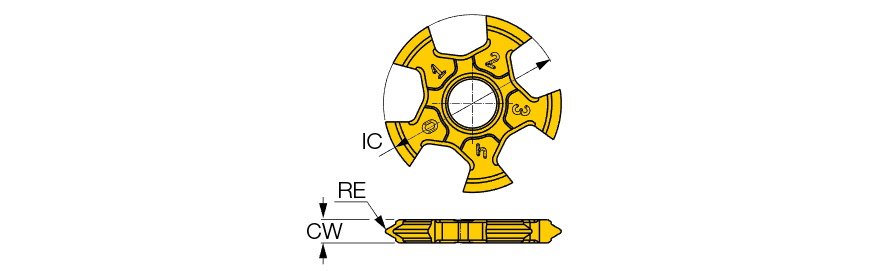

| Corner Radius (RE) | 0.1 mm | Profile Included Angle (PNA) | 60 Degrees |
| Cutting Width (CW) | 2.1 mm | Tool Type | Threading Regular Inserts |
| Inscribed Circle Diameter (IC) | 16 mm | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Coating | TiAlN | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| Family Description | External ISO Metric (DIN13 12-1986 class: 6G), indexable threading inserts with 10 threading corners, for general industry. | FamilyName | TTG-16E-ISO |
| Remarks | NOTE: FOR CUTTING SPEED RECOMMENDATIONS CLICK ON More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0075
Name
On-Edge Threading Indexable Inserts
FamilyName
TTG-16E-ISO
BrandName
Iscar
