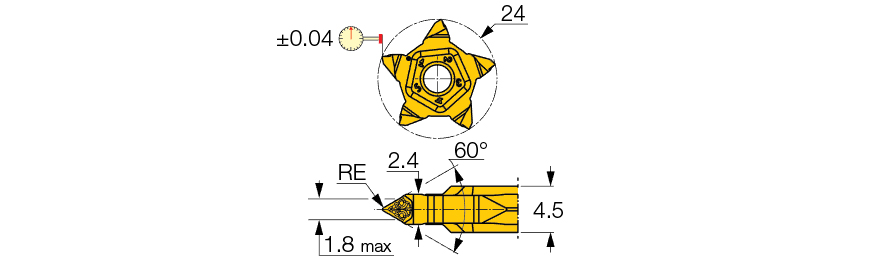

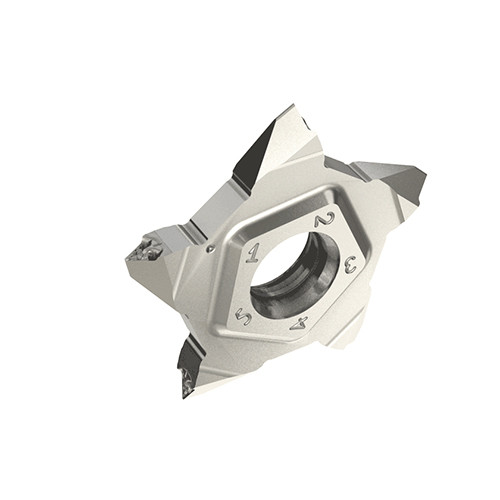

PENTA 24-MT-0.05 IC908
Precision ground pentagonal external threading inserts with a 60° partial profile for general applications
| Thread Standard | THFT | | Thread Pitch Maximum (TPX) | 3.5 mm |
| Corner Radius (RE) | 0.05 mm | Profile Included Angle (PNA) | 60 Degrees |
| Grade | IC908 | Tool Type | Groove-Turn Precision Inserts |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 80 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 8 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Metric |
| Application | | Threading (Ext.) Groove Turn T | Threading Between Walls | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Thread Form Type (THFT) | VP60 |
| Thread Pitch Minimum (TPN) | 0.25 mm | Unit | M |
Product Features
| Family Description | Precision ground pentagonal external threading inserts with a 60° partial profile for general applications | FamilyName | PENTA 24-MT |
| Remarks | TPX=0.175xD DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0110
Name
On-Edge Threading Indexable Inserts
FamilyName
PENTA 24-MT
BrandName
Iscar
