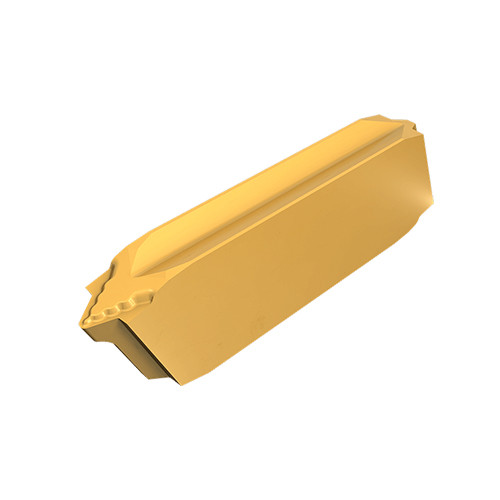

TIP 2P1.5-ISO IC08
Precision ground ISO metric, full profile, double-ended, external threading inserts with a chipformer for general applications.
| Thread Standard | THFT | | Applicable Material | | Aluminum / Non-Ferrous Materials | |
| Thread Pitch (TP) | 1.5 mm | Cutting Edge Length (L) | 15.3 mm |
| Corner Radius (RE) | 0.22 mm | Profile Included Angle (PNA) | 60 Degrees |
| Cutting Width (CW) | 2.4 mm | Tool Type | Threading Regular Inserts |
| Grade | IC08 | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | M60 |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Application | | Threading (Ext.) Groove Turn T | |
Product Features
| Family Description | Precision ground ISO metric, full profile, double-ended, external threading inserts with a chipformer for general applications. | FamilyName | TIP-P-ISO |
| Remarks | (a) TIP inserts are 1.6 mm longer than GIP in the same pocket Toolholder seat needs to be modified according to insert profile to ensure clearance | BrandName | Iscar |
| COO | Switzerland |
Shipping Info
Weight per item
0.0043
Name
On-Edge Threading Indexable Inserts
FamilyName
TIP-P-ISO
BrandName
Iscar
