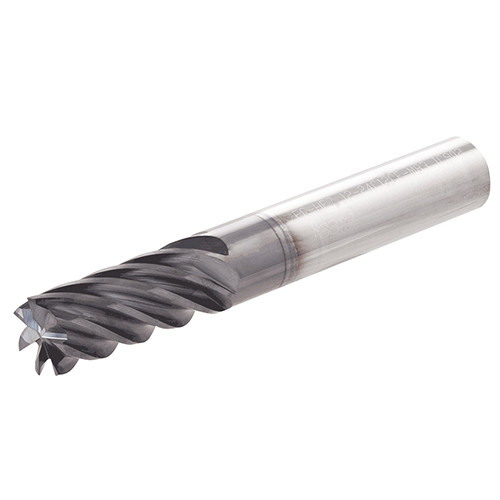

EC-H7 06-18C06CF-M65 IC902
7 flute endmills with different helix and variable pitch for CHATTERFREE high speed / trochoidal milling and finishing operations.

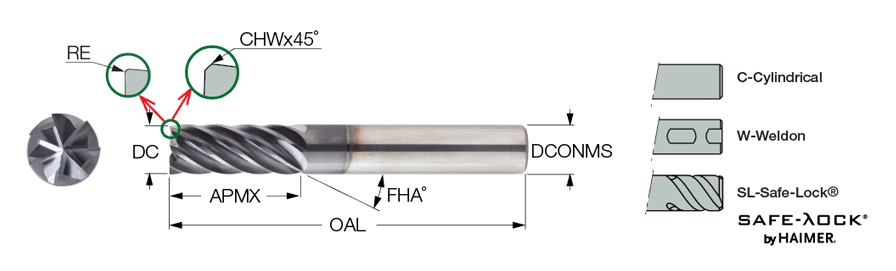

| Cutting Diameter (DC) | 6 mm | Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Grade | IC902 |
| Depth of Cut Maximum (APMX) | 18 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 65 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.07 mm/tooth |
| Coating | TiAlN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 7 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 18 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Shouldering | | Unit | M |
| Corner Chamfer Width (CHW) | 0.2 mm |
Product Features
| Family Description | 7 flute endmills with different helix and variable pitch for CHATTERFREE high speed / trochoidal milling and finishing operations. | FamilyName | EC-E7/H7-CF |
| Remarks | Enables processing at a radial width of cut (AE) of up to 0.10xDC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0840
Name
Square & Corner Radius End Mills
FamilyName
EC-E7/H7-CF
BrandName
Iscar
