ECR-B4MF 10-22C10-72 IC900
Solid carbide roughing endmills with 4 and 6 flute, 45° helix, medium length (2xD). Used for high stock removal rates. Special design for hard (up to 65 HRC) materials and high temperature alloys.

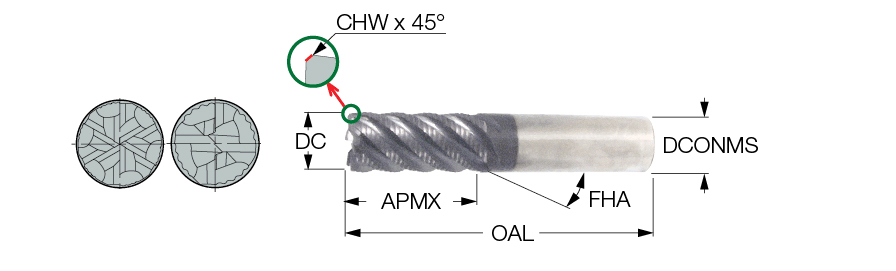

| Cutting Diameter (DC) | 10 mm | Corner Chamfer Width (CHW) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 22 mm | Grade | IC900 |
| Overall Length (OAL) | 72 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Chamfer | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 22 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e9 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | Solid carbide roughing endmills with 4 and 6 flute, 45° helix, medium length (2xD). Used for high stock removal rates. Special design for hard (up to 65 HRC) materials and high temperature alloys. | FamilyName | ECR-B-MF |

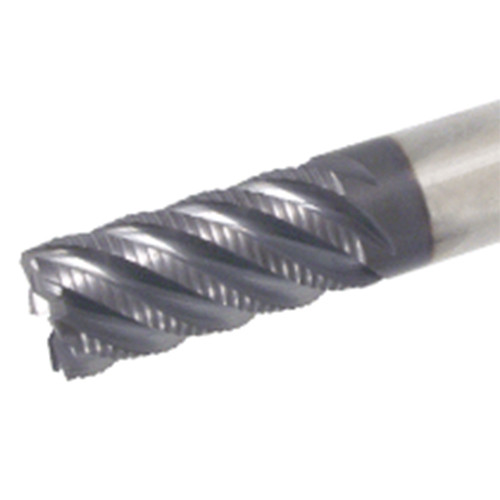

| Remarks | The rougher's cutting edge profile has shallow serrations. A very durable design which leaves only a small amount of material for the finishing cut. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0790
Name
Square & Corner Radius End Mills
FamilyName
ECR-B-MF
BrandName
Iscar
