EB-A2 16-30C16M250 IC903

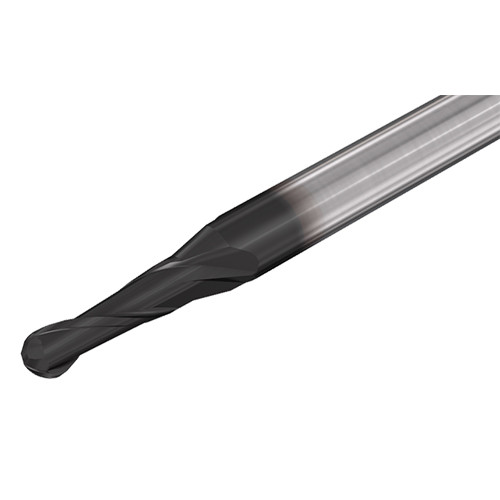

2 flute, 30° helix extra long solid carbide ball nose endmills for materials up to 65 HRC.

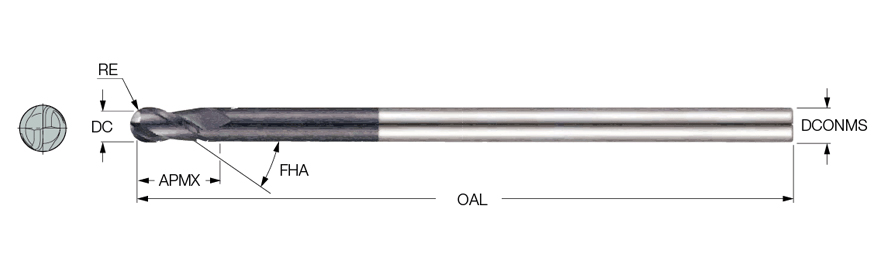

| Cutting Diameter (DC) | 16 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Corner Radius (RE) | 8 mm |
| Depth of Cut Maximum (APMX) | 30 mm | Grade | IC903 |
| Overall Length (OAL) | 250 mm | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Type | Round | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | 2 flute, 30° helix extra long solid carbide ball nose endmills for materials up to 65 HRC. | FamilyName | EB-A2 (extra long) |
| Remarks | The DC tolerance is: 0 - -0.030 mm | BrandName | Iscar |
| COO | China |
Shipping Info
Weight per item
0.6890
Name
Ballnose End Mills
FamilyName
EB-A2 (extra long)
BrandName
Iscar
