EB-A2 05-40C05E100 IC900

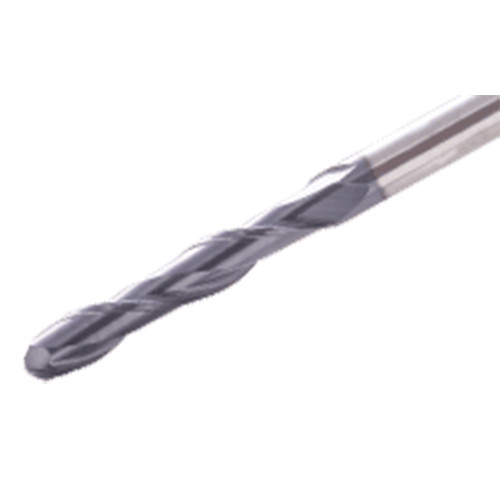

SOLIDECO - economical type 2 flute, 30° helix ball nose extra long solid carbide endmills.

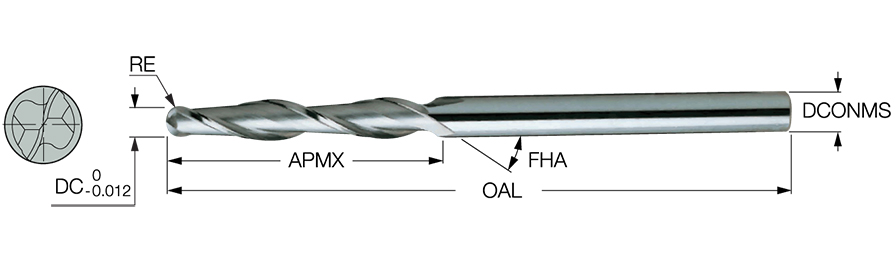

| Cutting Diameter (DC) | 5 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 5 mm | Corner Radius (RE) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 40 mm | Corner Radius Tolerance (+/-) (RETOL) | 0.02 mm |
| Overall Length (OAL) | 100 mm | Grade | IC900 |
| Cutting Edge Material | Carbide | Tool Type | Solid ball nose |
| Coating | AlTiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Body Material | Carbide |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Metric |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | SOLIDECO - economical type 2 flute, 30° helix ball nose extra long solid carbide endmills. | FamilyName | EB-A2 (economical-extra long) |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
0.0290
Name
Ballnose End Mills
FamilyName
EB-A2 (economical-extra long)
BrandName
Iscar
