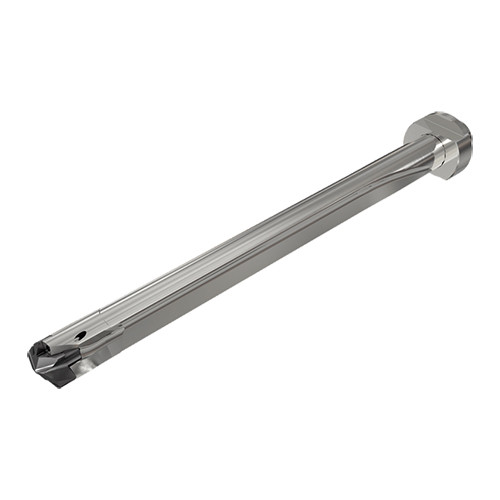

MNSNT 135-250-MF16X1
Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types.

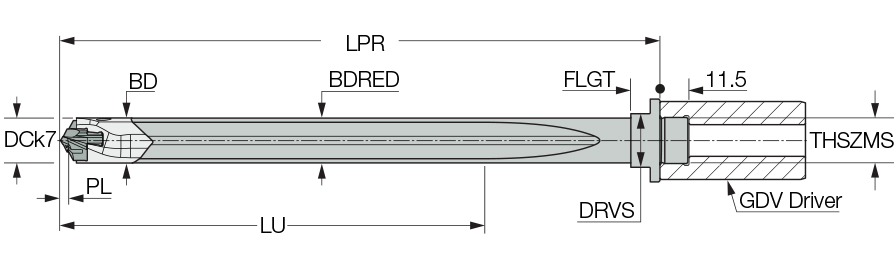

| Cutting Diameter (DC) | 13.5 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 250 mm | Measurement Type | Metric |
| Application | | Drilling | Gundrills | | Master Insert Identification (MIID) | HCP 135 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 3.51 mm |
| Insert Seat Size Code (SSC) | 13.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 13.5 mm | Connection Thread Nominal Size Machine Side (THSZMS) | MF16X1 |
| Cutting Diameter Maximum (DCX) | 13.99 mm | Drive Size (DRVS) | 16 mm |
| Protruding Length (LPR) | 326 mm | Unit | M |
Product Features
| Family Description | Gundrills carrying standard SUMOCHAM indexable inserts and a rear threaded connection which enables attaching different standard shank types. | COO | Israel |

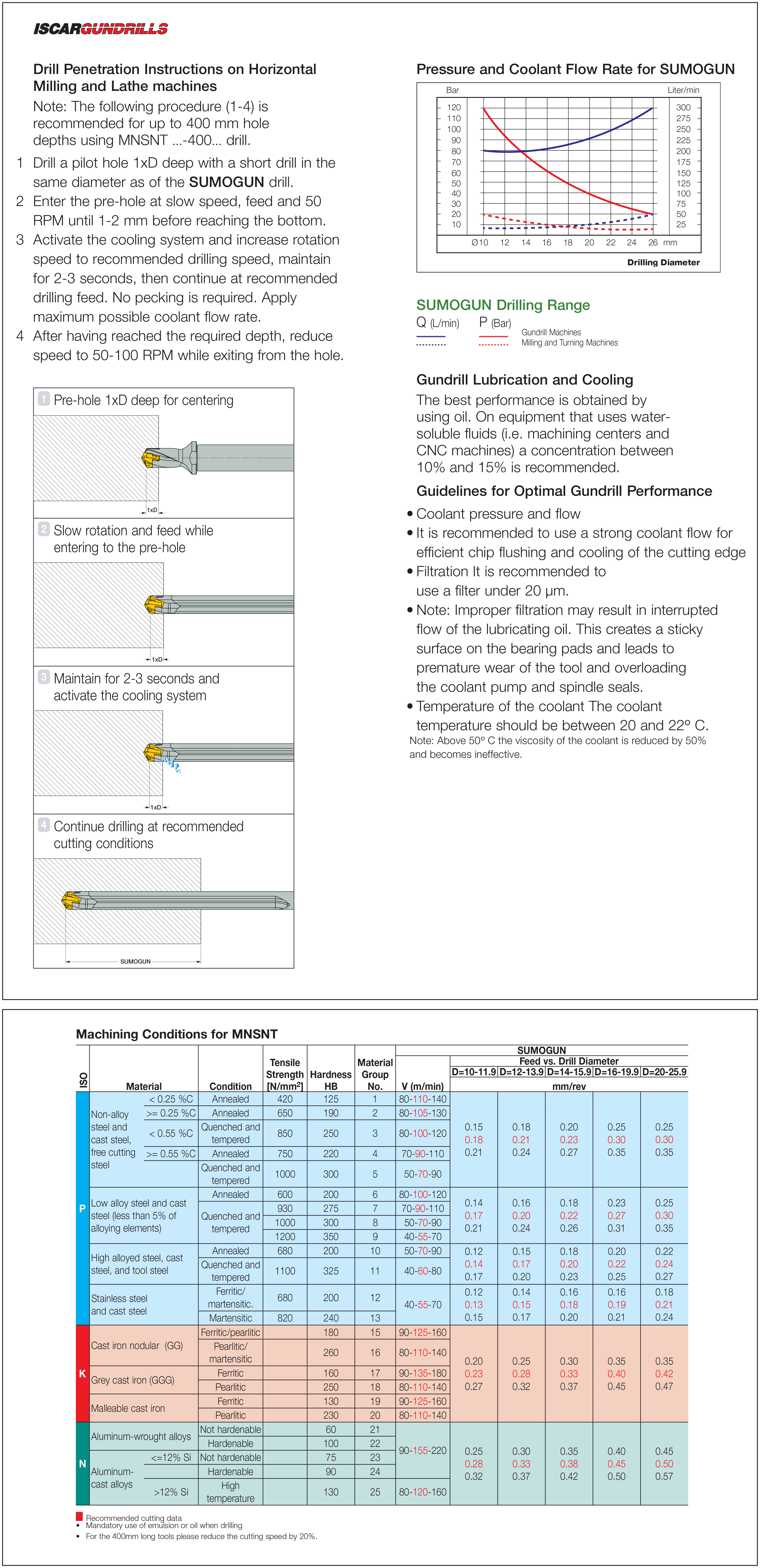

| Remarks | For user guide and cutting conditions, click on More Info |
Shipping Info
Weight per item
0.4150
