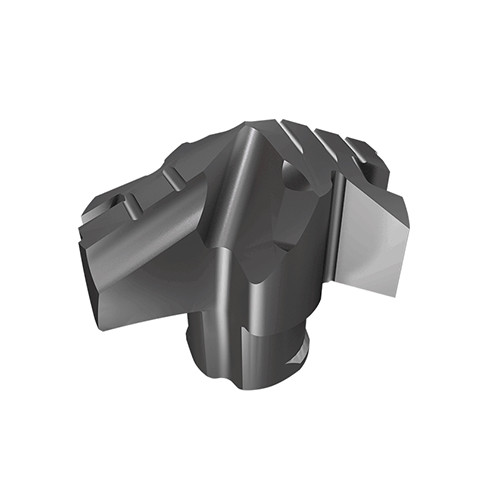

ICG 150 IC908
Exchangeable chip splitting drilling heads for DCN drills, for machining ISO M and ISO P materials . Feature chip splitting notches on the cutting edge and an impressed chip breaker.

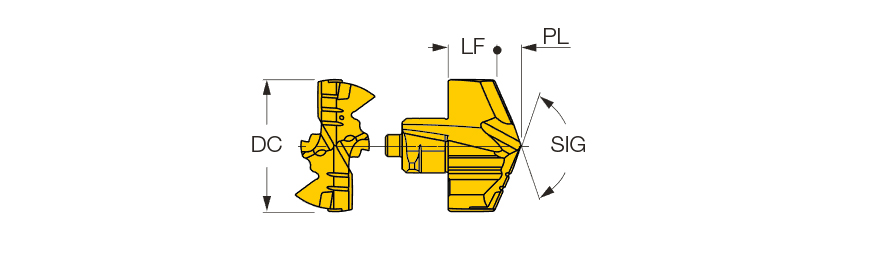

| Cutting Diameter (DC) | 15 mm | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Insert Thickness (S) | 8.43 mm |
| Application | | Chamfering | Drilling | Gundrills | | Point Length (PL) | 2.98 mm |
| Grade | IC908 | Point Angle (SIG) | 130 Degrees |
| Tool Type | Drilling Heads | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 15.0 | Body Material | Carbide |
| Functional Length (LF) | 5.45 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable chip splitting drilling heads for DCN drills, for machining ISO M and ISO P materials . Feature chip splitting notches on the cutting edge and an impressed chip breaker. | COO | Israel |
| Remarks | Drilling head equipped with chip breaker and chip splitter |
Shipping Info
Weight per item
0.0145
