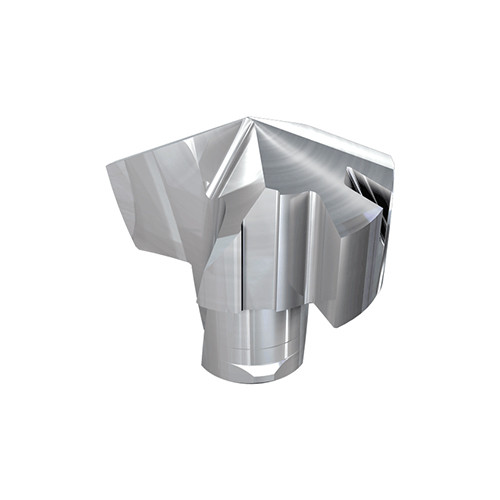

ICN 137 IC08
Exchangeable drilling heads for DCN drills, for machining ISO N materials. The drill head is designed with a sharp cutting edge and polished rake face, available in increments of 0.1 mm

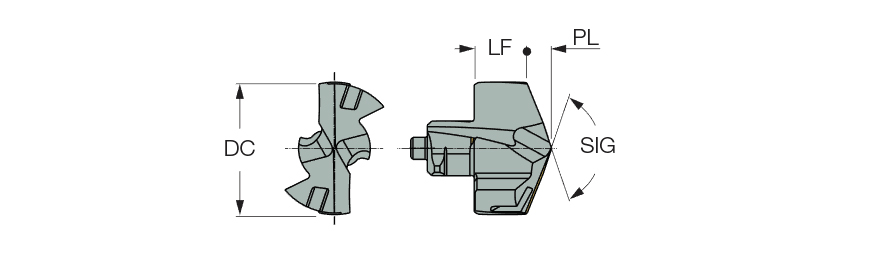

| Cutting Diameter (DC) | 13.7 mm | Measurement Type | Metric |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Insert Thickness (S) | 7.6 mm |
| Application | | Chamfering | Drilling | | Point Length (PL) | 2.09 mm |
| Grade | IC08 | Point Angle (SIG) | 140 Degrees |
| Tool Type | Drilling Heads | Coating | Uncoated |
| Insert Seat Size Code (SSC) | 13.0 | Body Material | Carbide |
| Functional Length (LF) | 5.51 mm | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Exchangeable drilling heads for DCN drills, for machining ISO N materials. The drill head is designed with a sharp cutting edge and polished rake face, available in increments of 0.1 mm | COO | Israel |
| Remarks | The drill is manufactured with a sharp cutting edge and polished flutes |
Shipping Info
Weight per item
0.0120
