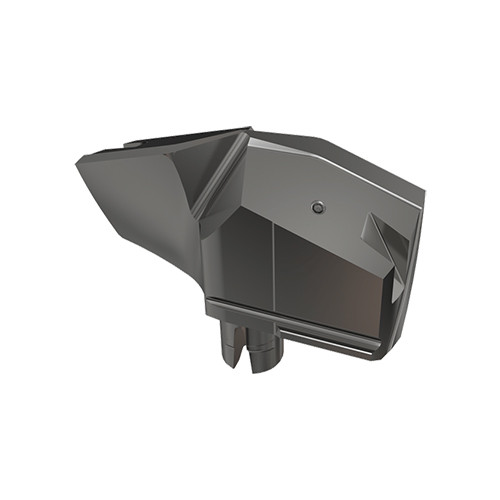

IFP 362-SPADE IQ IC908
Exchangeable DFN drill heads for machining ISO P, ISO M and high temp. alloys (ISO S) materials
| Cutting Diameter (DC) | 36.2 mm | Cutting Edge Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Application | | Drilling | | Point Length (PL) | 5.502 mm |
| Grade | IC908 | Point Angle (SIG) | 140 Degrees |
| Protruding Length (LPR) | 20.8 mm | Coating | TiAlN |
| Insert Seat Size Code (SSC) | 36.0 | Body Material | Carbide |
| Functional Length (LF) | 15.3 mm | Unit | M |
Product Features
| Family Description | Exchangeable DFN drill heads for machining ISO P, ISO M and high temp. alloys (ISO S) materials | COO | Israel |
| Remarks | Intermediate sizes can be supplied on request Before using IFP geometry inserts with a drill above 5xD ratio, a pre-hole should be prepared by using a DFN 1.5xD to guide the drill (an endmill can be used) |
Shipping Info
Weight per item
0.1230
