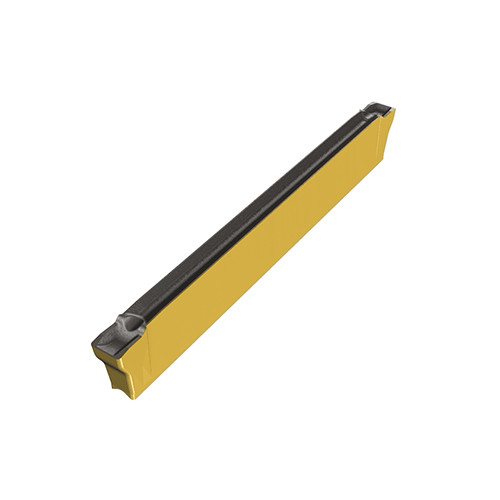

DGN 2002C-XL IC808
First choice for the parting of bars up to 65 mm diameters, hard materials and tough applications. A positive rake with a single cavity and a negative land. Provides extra cutting-edge strength. Used for medium-to-high feeds.

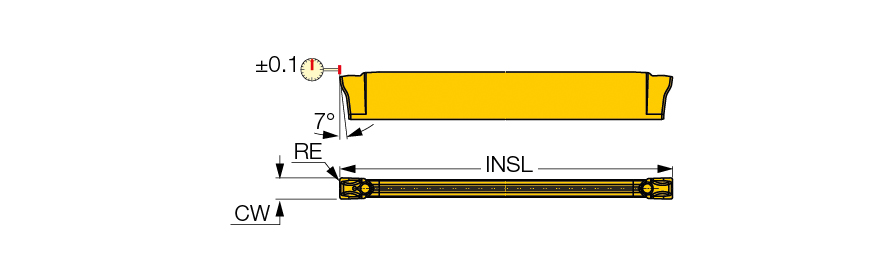

| Cutting Width (CW) | 2.05 mm | Application | | Ext. Grooving | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Max. Grooving Feed (fg(max)) | 0.16 mm/rev |
| Overall Length (OAL) | 32 mm | Min. Grooving Feed (fg(min)) | 0.05 mm/rev |
| Cutting Depth Maximum (CDX) | 30 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Cutting Direction (HAND) | Neutral | Unit | M |
Product Features
| Family Description | First choice for the parting of bars up to 65 mm diameters, hard materials and tough applications. A positive rake with a single cavity and a negative land. Provides extra cutting-edge strength. Used for medium-to-high feeds. | FamilyName | DGN-C-XL |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0065
Name
Parting Off Indexable Inserts
FamilyName
DGN-C-XL
BrandName
Iscar
