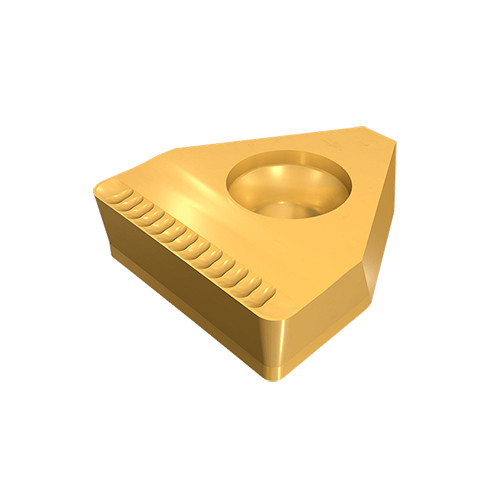

TIGERV 1700-200-CW IC808
Utility single-ended inserts for external deep grooving and heavy machining

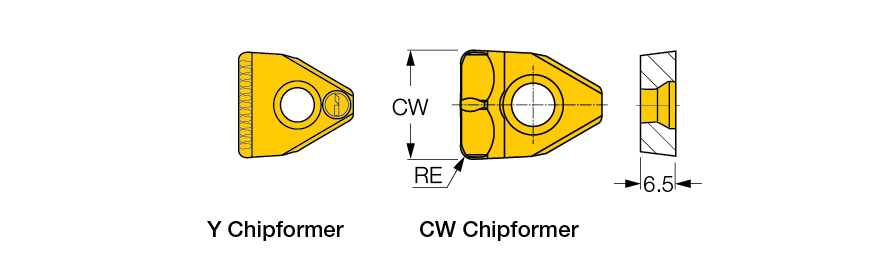

| Cutting Width (CW) | 17 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 2 mm | Max. Grooving Feed (fg(max)) | 0.6 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Min. Grooving Feed (fg(min)) | 0.2 mm/rev |
| Insert Thickness (S) | 6.5 mm | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN+AlTiN+TiN | Body Material | Carbide |
| Grade | IC808 | Cutting Width Tolerance (+/-) (CWTOL) | 0.08 mm |
| Application | | Ext. Grooving | | Unit | M |
Product Features
| Family Description | Utility single-ended inserts for external deep grooving and heavy machining | FamilyName | TIGERV |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0251
Name
Parting Off Indexable Inserts
FamilyName
TIGERV
BrandName
Iscar
