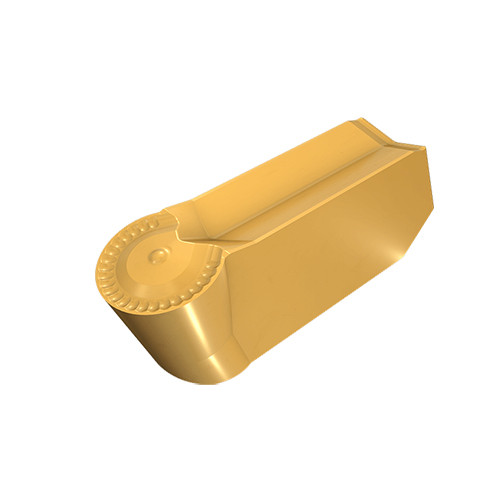

GIMY 630F IC804
Utility, as pressed, single-ended, full-radius inserts. Used for deep turning and grooving, can cut arcs to 250°. F -type chipformer for low-to-medium feeds.

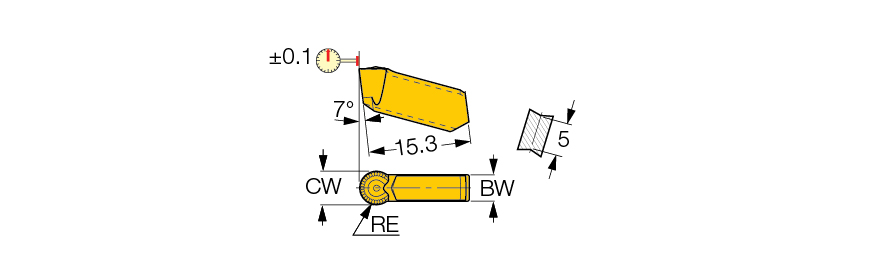

| Cutting Width (CW) | 6 mm | Application | | Ext. Grooving | Ext. Profiling | Face Grooving Along Shaft | Int. Grooving | Int. Profiling | |
| Corner Radius (RE) | 3 mm | Applicable Material | | Super-Alloys / Titanium | |
| Clearance Angle Major (AN) | 7 Degrees | Chip Breaker Type | FT |
| Insert Length (INSL) | 15.3 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 70 mm | Tool Type | Groove-Turn Utility Inserts |
| Coating | AlTiN "SUMO TEC" | Body Material | Carbide |
| Grade | IC804 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| Family Description | Utility, as pressed, single-ended, full-radius inserts. Used for deep turning and grooving, can cut arcs to 250°. F -type chipformer for low-to-medium feeds. | FamilyName | GIMY-F |
| Remarks | DMIN for internal applications =70 mm Can cut arcs to 250° | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0082
Name
Groove/Turn Indexable Inserts
FamilyName
GIMY-F
BrandName
Iscar
