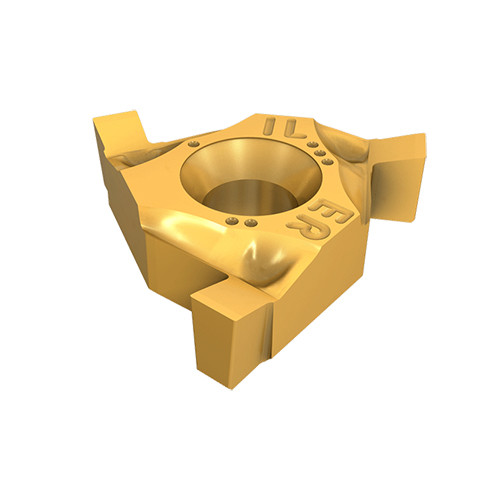

GTMA 16ER/IL 140 IC508
Utility shallow external and internal grooving inserts with three cutting edges.

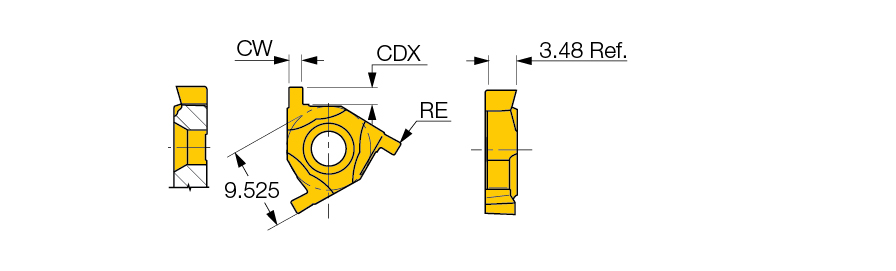

| Cutting Width (CW) | 1.4 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.1 mm | Application | | Ext. Grooving | Int. Grooving | |
| Cutting Depth Maximum (CDX) | 1.8 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 3.48 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Tool Type | Groove-Turn Utility Inserts |
| Coating | TiCN+TiN | Body Material | Carbide |
| Grade | IC508 | Unit | M |
Product Features
| Family Description | Utility shallow external and internal grooving inserts with three cutting edges. | FamilyName | GTMA |
| Remarks | Inserts for right-hand external grooving can be used as left-hand internal grooving Use with anvil AE 16-0 on external tools and with anvil AI 16-0 on internal tools | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0051
Name
Groove/Turn Indexable Inserts
FamilyName
GTMA
BrandName
Iscar
