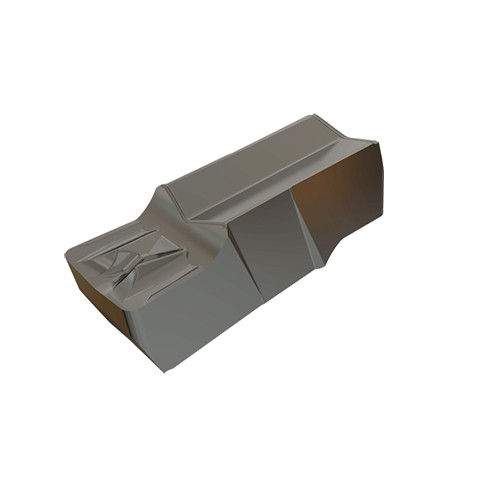

GIFI 6.00E-0.80 IC8250
Precision double-ended inserts for internal turning and grooving at low to medium feeds. Min. bore diameter 20 mm.

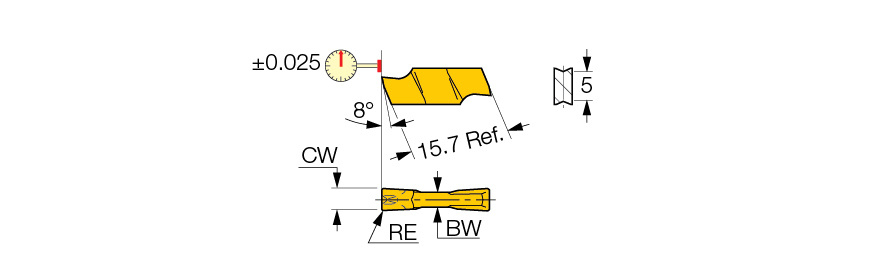

| Cutting Width (CW) | 6 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Application | | Int. Groove & Turn | Int. Grooving | Internal Groove Milling | Side Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 15.5 mm | Applicable Material | | Steel | Stainless Steel | |
| Clearance Angle Major (AN) | 8 Degrees | Measurement Type | Metric |
| Insert Length (INSL) | 15.7 mm | Tool Type | Groove-Turn Precision Inserts |
| Minimum Bore Diameter (DMIN) | 20 mm | Body Material | Carbide |
| Coating | TiCN+Al2O3+TiN | Unit | M |
| Grade | IC8250 |
Product Features
| Family Description | Precision double-ended inserts for internal turning and grooving at low to medium feeds. Min. bore diameter 20 mm. | FamilyName | GIFI-E |
| Remarks | DMIN for internal applications = 20 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0077
Name
Groove/Turn Indexable Inserts
FamilyName
GIFI-E
BrandName
Iscar
