| Thread Standard | THFT | | Cutting Direction (HAND) | Right Hand |

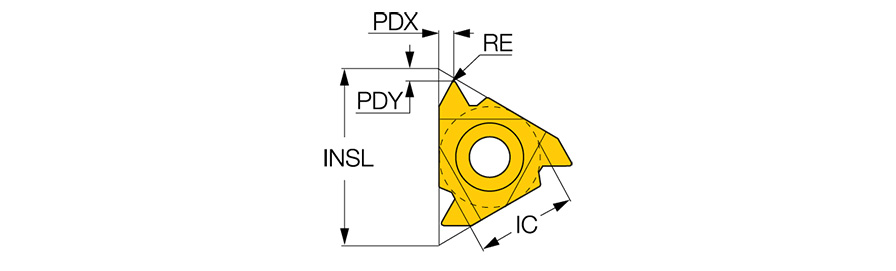

| Inscribed Circle Diameter (IC) | 9.52 mm | Threads per Inch Minimum (TPIN) | 8 |
| Insert Length (INSL) | 16.49 mm | Threads per Inch Maximum (TPIX) | 48 |
| Corner Radius (RE) | 0.08 mm | Tool Type | Threading Regular Inserts |
| Grade | IC250 | Measurement Type | Metric |
| Coating | TiCN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | VP60 |
| Application | | External Thread Milling | External Threading | Internal Thread Milling | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | | Profile Distance EY (PDY) | 1.2 mm |
Product Features
| Family Description | External 60° partial profile, laydown threading inserts. IR/L - Ground periphery and rake, ERB - with a chipformer and peripherally ground, ERM - With a chipformer. Application: general applications | FamilyName | ER/L-60° |
| Remarks | For Insert Identification System, click on More Info For threaing between walls use GRIP-type inserts SCIR/L B/F -MTR/L, TIP-MT, GEPI-MT, TIPI-MT DIN13 , ISO 68-1, ISO 965 (1&2) - External tolerance: 6g ANSI/ASME B1.1 - External tolerance: 2A | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0060
Name

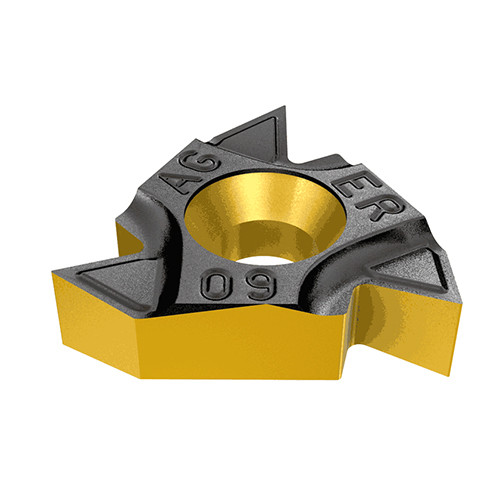

Laydown Threading Indexable Inserts
FamilyName
ER/L-60°
BrandName
Iscar
