SEL 2525 M22

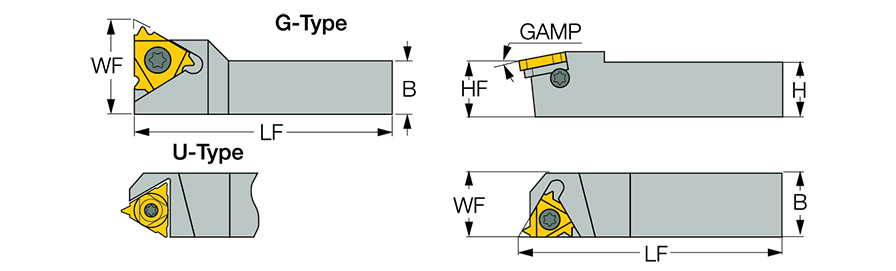

| Shank Height (H) | 25 mm | Body Material | Steel |
| Shank Width (B) | 25 mm | Tool Type | External Non-Rotating Threading Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Application | | Ext. Grooving | External Threading | | Unit | M |
| Functional Width (WF) | 25 mm | Functional Length (LF) | 150 mm |
Product Features
| Family Description | External threading toolholders (AD - short tools for adapter holders) | FamilyName | SER/L-ISC3800010 -M |
| Remarks | All tools are made for 1.5 helix angle For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M For GTGA inserts, use anvil AE 16-0 Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.625
Name
Laydown Threading Indexable Holders
FamilyName
SER/L-ISC3800010 -M
BrandName
Iscar
