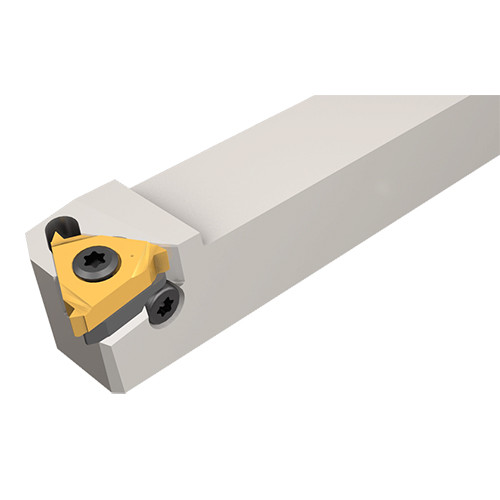

SER 0310 H11

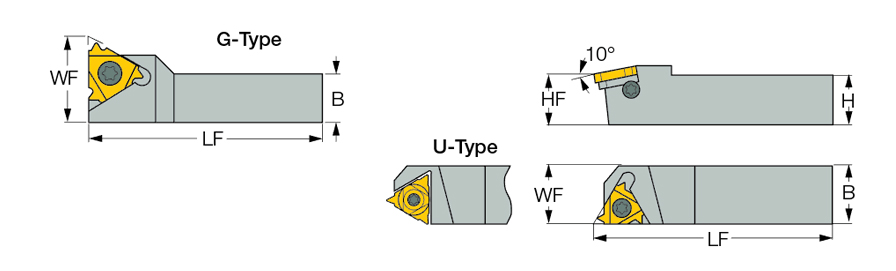

| Shank Height (H) | 0.31″ | Body Material | Steel |
| Shank Width (B) | 0.31″ | Tool Type | External Non-Rotating Threading Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Ext. Grooving | External Threading | | Unit | I |
| Functional Width (WF) | 0.43″ | Functional Length (LF) | 4″ |
Product Features
| Family Description | External threading toolholders (AD - short tools for adapter holders) | FamilyName | SER/L-ISC3810081 -I |
| Remarks | All tools are made for 1.5 helix angle For multi-tooth inserts use anvils AE16M / AI16M; AE22M / AI22M; AE27M / AI27M For GTGA inserts, use anvil AE 16-0 Use Type M anvils (e.g., AE22M) for multi-tooth inserts. If a Type M anvil is unavailable, modify a standard anvil by grinding down its teeth | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.163
Name
Laydown Threading Indexable Holders
FamilyName
SER/L-ISC3810081 -I
BrandName
Iscar
