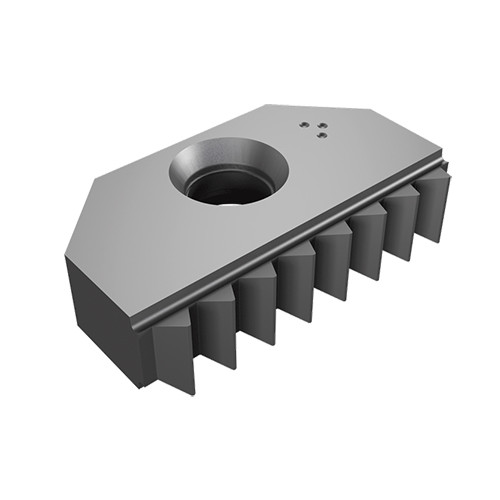

MT LNHU 1403 18NPSF 908
External & internal NPSF (Dryseal American National Standard Straight Pipe Thread) full profile thread milling inserts.Used with soft or ductile materials which will tend to adjust at assembly to the taper of external threads.

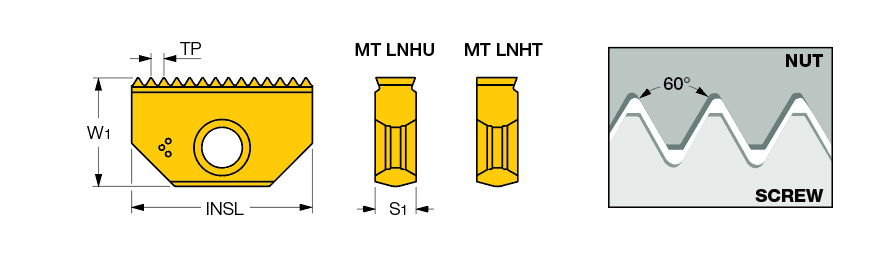

| Thread Standard | THFT | | Cutting Edge Material | Carbide |
| Thread Pitch (TP) | 1.411 mm | Coating | TiAlN |
| Threads per Inch (TPI) | 18 Threads/" | Tool Type | Threading Regular Inserts |
| Insert Length (INSL) | 14 mm | Measurement Type | Metric |
| Insert Width (W1) | 7.9 mm | Body Material | Carbide |
| Insert Thickness Total (S1) | 3.2 mm | Thread Form Type (THFT) | NPSF |
| Application | | External Thread Milling | Internal Thread Milling | | Thread Type (TTP_DF2) | EXT |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | External & internal NPSF (Dryseal American National Standard Straight Pipe Thread) full profile thread milling inserts.Used with soft or ductile materials which will tend to adjust at assembly to the taper of external threads. | COO | Israel |
| Remarks | The same insert for external & internal threading For cutting speed recommendations, Click on More Info ANSI/ASME B1.20.1 Internal & External tolerance: Standard NPS |
Shipping Info
Weight per item
0.0080
