TPG M-4.5X0.75-S HEST

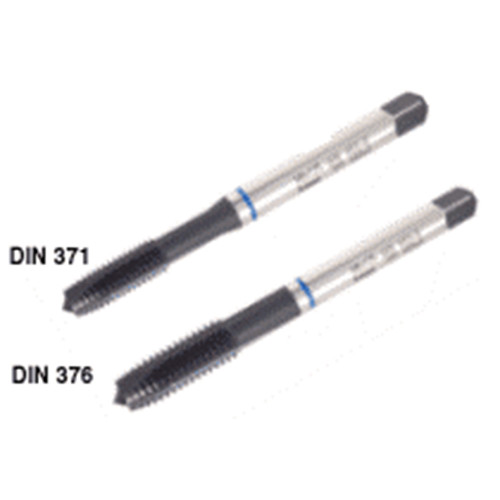

HSS gun point machine taps according to DIN 13 - ISO Metric coarse threads on steel with good machinability.
| Thread Standard | THFT | | Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |

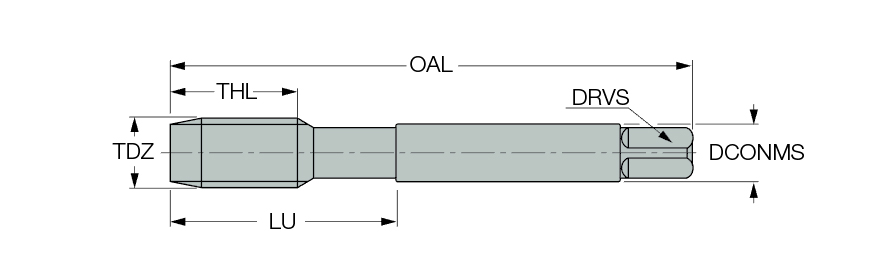

| Thread Size | M4.5 × 0.75 | Connection Diameter Machine Side (DCONMS) | 6 mm |
| Thread Diameter Size (TDZ) | M4.5 | Thread Cutting Part Length (THL) | 14 mm |
| Thread Pitch (TP) | 0.75 mm | Drive Size (DRVS) | 4.9 mm |
| Usable Length (LU) | 25 mm | Measurement Type | Metric |
| Overall Length (OAL) | 70 mm | Grade | HEST |
| Coating | Steam tempered | Body Material | HSS |
| Flute Count (NOF) | 3 | Thread Form Type (THFT) | M60 |
| Cutting Edge Material | HSS | Unit | M |
| Tool Type | Machine Blind Hole Taps |
Product Features
| Family Description | HSS gun point machine taps according to DIN 13 - ISO Metric coarse threads on steel with good machinability. | COO | Korea |
Shipping Info
Weight per item
0.0150
