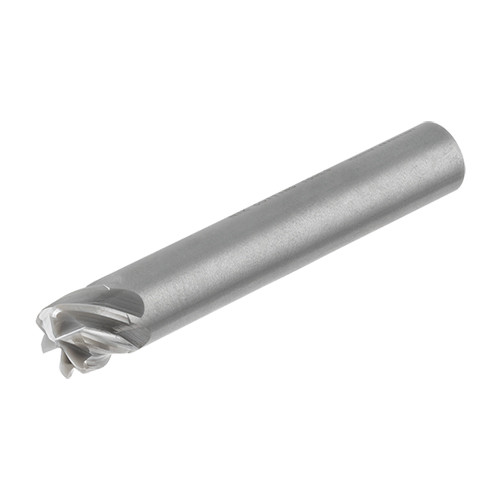

ECI-E6 500-375-R.068CE IS45
Solid ceramic endmills with 6 flutes for machining nickel-based alloy materials
| Cutting Diameter (DC) | 1/2″ | Corner Radius (RE) | 0.068″ |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Depth of Cut Maximum (APMX) | 3/8″ | Grade | IS45 |
| Overall Length (OAL) | 2-3/4″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Ceramic | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 6 | Body Material | Ceramic |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 3/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
Product Features
| Family Description | Solid ceramic endmills with 6 flutes for machining nickel-based alloy materials | FamilyName | ECI-E6 (CER) |
| COO | Japan | BrandName | Iscar |
Shipping Info
Weight per item
0.0772
Name
Square & Corner Radius End Mills
FamilyName
ECI-E6 (CER)
BrandName
Iscar
