| Applicable Material | | Cast Iron | | Grade | BI30K |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Facing | Int. Square 75° Approach | Shouldering | Slanted Shoulder & Chamfer | | Tool Type | Turn Positive Inserts |
| Insert Style | SNGN | Min D.O.C. | 0.05 mm |
| Corner Radius (RE) | 1.6 mm | Depth of Cut Maximum (APMX) | 5 mm |
| Insert Size | 090416 | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Cutting Edge Length (L) | 9.52 mm | Max. Turning Feed (ft(max)) | 0.5 mm/rev |
| Insert Thickness (S) | 4.76 mm | Measurement Type | Metric |
| Inscribed Circle Diameter (IC) | 9.52 mm | Body Material | Carbide |
| Cutting Edge Material | PCBN | Unit | M |
Product Features

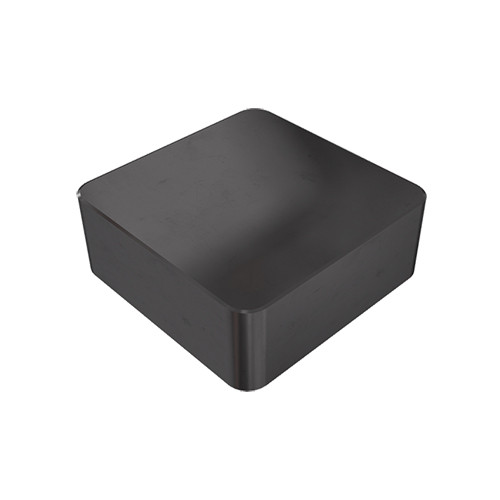

| Family Description | Negative square solid CBN inserts for cast iron machining | FamilyName | SNGN S (CBN) |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0145
Name
Turning Indexable Inserts
FamilyName
SNGN S (CBN)
BrandName
Iscar
