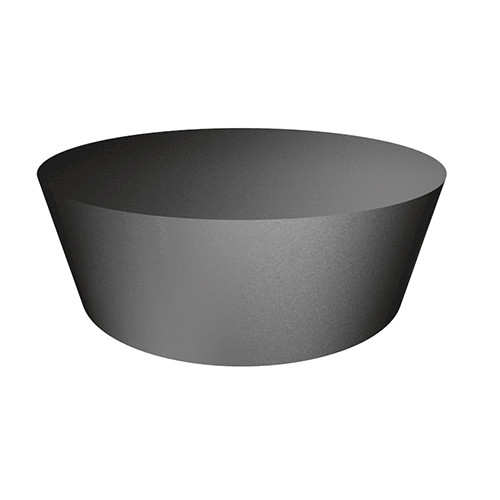

RPGN 090300 E004 IS45
Positive round ceramic inserts for machining cast iron and heat-resistant alloys
| Applicable Material | | Cast Iron | Super-Alloys / Titanium | | Min D.O.C. | 0.2 mm |
| Application | | Ext. Round Face & Turn | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | | Depth of Cut Maximum (APMX) | 3 mm |
| Insert Style | RPG | Min. Turning Feed (ft(min)) | 0.09 mm/rev |
| Insert Size | 2 E02 | Max. Turning Feed (ft(max)) | 0.45 mm/rev |

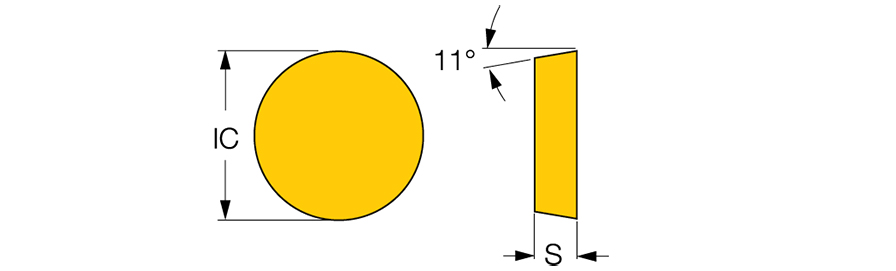

| Insert Thickness (S) | 3.18 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Cutting Edge Material | Ceramic | Body Material | Carbide |
| Grade | IS45 | Unit | M |
| Tool Type | Turn Positive Inserts |
Product Features
| Family Description | Positive round ceramic inserts for machining cast iron and heat-resistant alloys | FamilyName | RPGN (CER) |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0028
Name
Turning Indexable Inserts
FamilyName
RPGN (CER)
BrandName
Iscar
