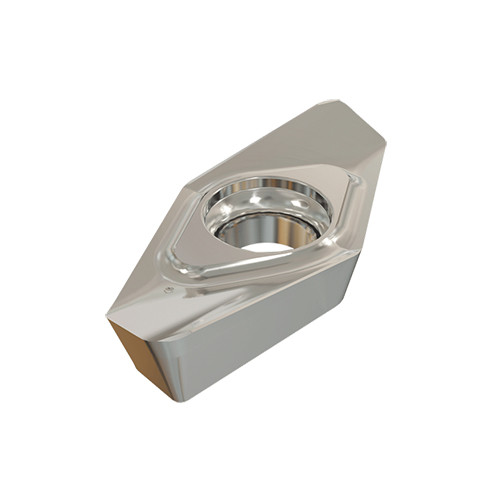

HSM90S APCR 140520R-FWP IC28
HELIALU super positive and polished rake inserts for machining aluminum at high rotation speed. The insert features a groove on its bottom, designed to improve resistance to centrifugal force
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

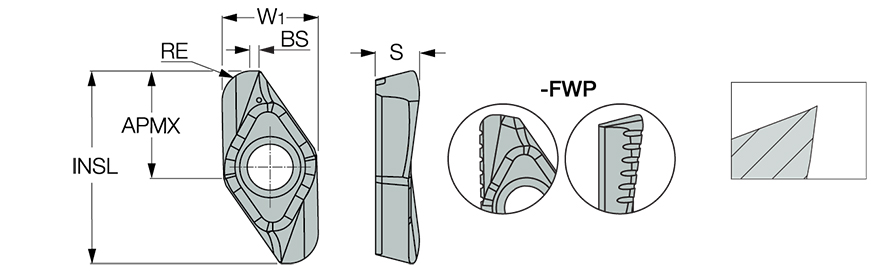

| Insert Length (INSL) | 25 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 2 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 13.5 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 12.5 mm | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 5.95 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1.1 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IC28 |
Product Features
| Family Description | HELIALU super positive and polished rake inserts for machining aluminum at high rotation speed. The insert features a groove on its bottom, designed to improve resistance to centrifugal force | FamilyName | HSM90S APCR 1405 |
| Remarks | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw The inserts should be mounted on the cutter in an alternating edge configuration order when using -FWP geometry | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0126
Name
Milling Indexable Inserts
FamilyName
HSM90S APCR 1405
BrandName
Iscar
