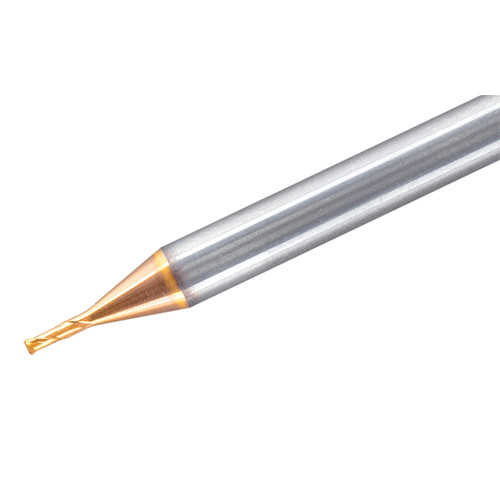

EC-A2 004-06/4C4R005H45T IC602
2 flute endmill with a corner radius for high speed machining hardened steel of up to 65 HRc

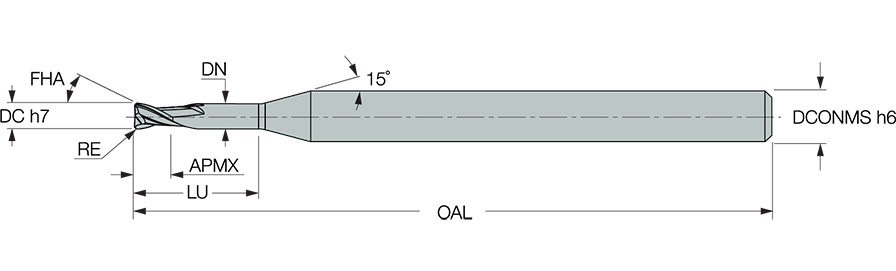

| Cutting Diameter (DC) | 0.4 mm | Grade | IC602 |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Neck Diameter (DN) | 0.37 mm |
| Depth of Cut Maximum (APMX) | 0.6 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 45 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.01 mm/tooth |
| Coating | AlTiSiN | Minimum Feed per Tooth (fz(min)) | 0.006 mm/tooth |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 4 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Shouldering | Slotting | | Unit | M |
| Corner Radius (RE) | 0.05 mm |
Product Features
| Family Description | 2 flute endmill with a corner radius for high speed machining hardened steel of up to 65 HRc | FamilyName | EC-A2-R-T |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0150
Name
Square & Corner Radius End Mills
FamilyName
EC-A2-R-T
BrandName
Iscar
