A-SCLXR 5-2X

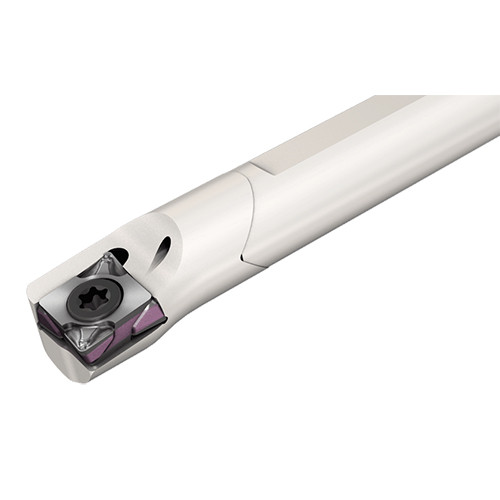

Screw lock boring bars on which CXMU 80° rhombic inserts are mounted

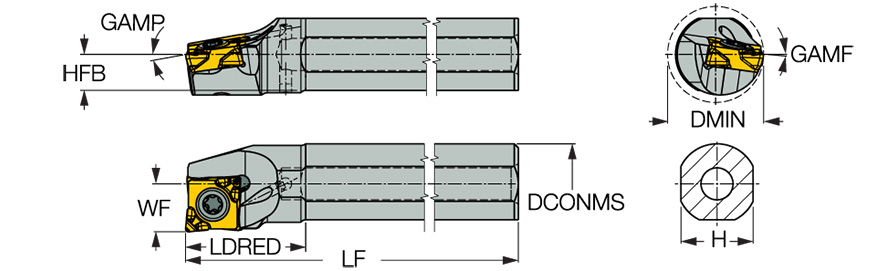

| Connection Diameter Machine Side (DCONMS) | 0.313″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 4″ | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 0.469″ | Rake Angle Axial (GAMP) | 8 Degrees |
| Shank Height (H) | 0.28″ | Rake Angle Radial (GAMF) | 10 Degrees |
| Functional Width (WF) | 0.217″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CXMU 060208 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.413″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Unit | I |
Product Features
| Family Description | Screw lock boring bars on which CXMU 80° rhombic inserts are mounted | FamilyName | A/E-SCLXR-2X |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.1146
Name
Indexable Internal Turning Tools
FamilyName
A/E-SCLXR-2X
BrandName
Iscar
