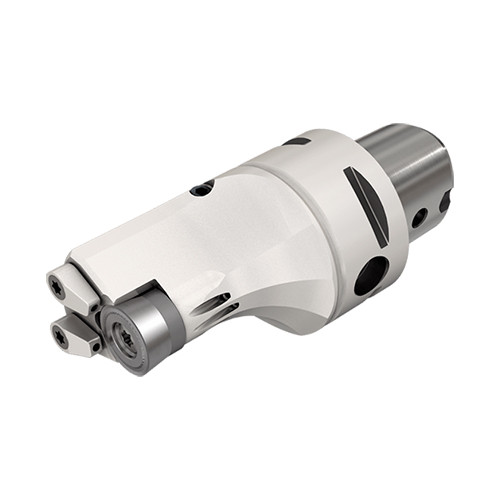

C5 SRDCN-16-H100-Y
Y-axis turning tools carrying round inserts with 7° clearance angle

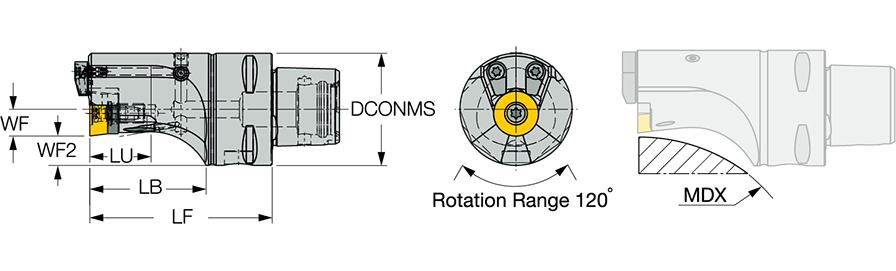

| Functional Length (LF) | 100 mm | Application | | Y Axis Variable Approach angle | |
| Functional Width (WF) | 12 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 50 mm | Tool Type | Tapered Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 16 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Master Insert Identification (MIID) | RCMT 1606M0-14 |
Product Features
| Family Description | Y-axis turning tools carrying round inserts with 7° clearance angle | FamilyName | C#-SRDCN-16-Y |

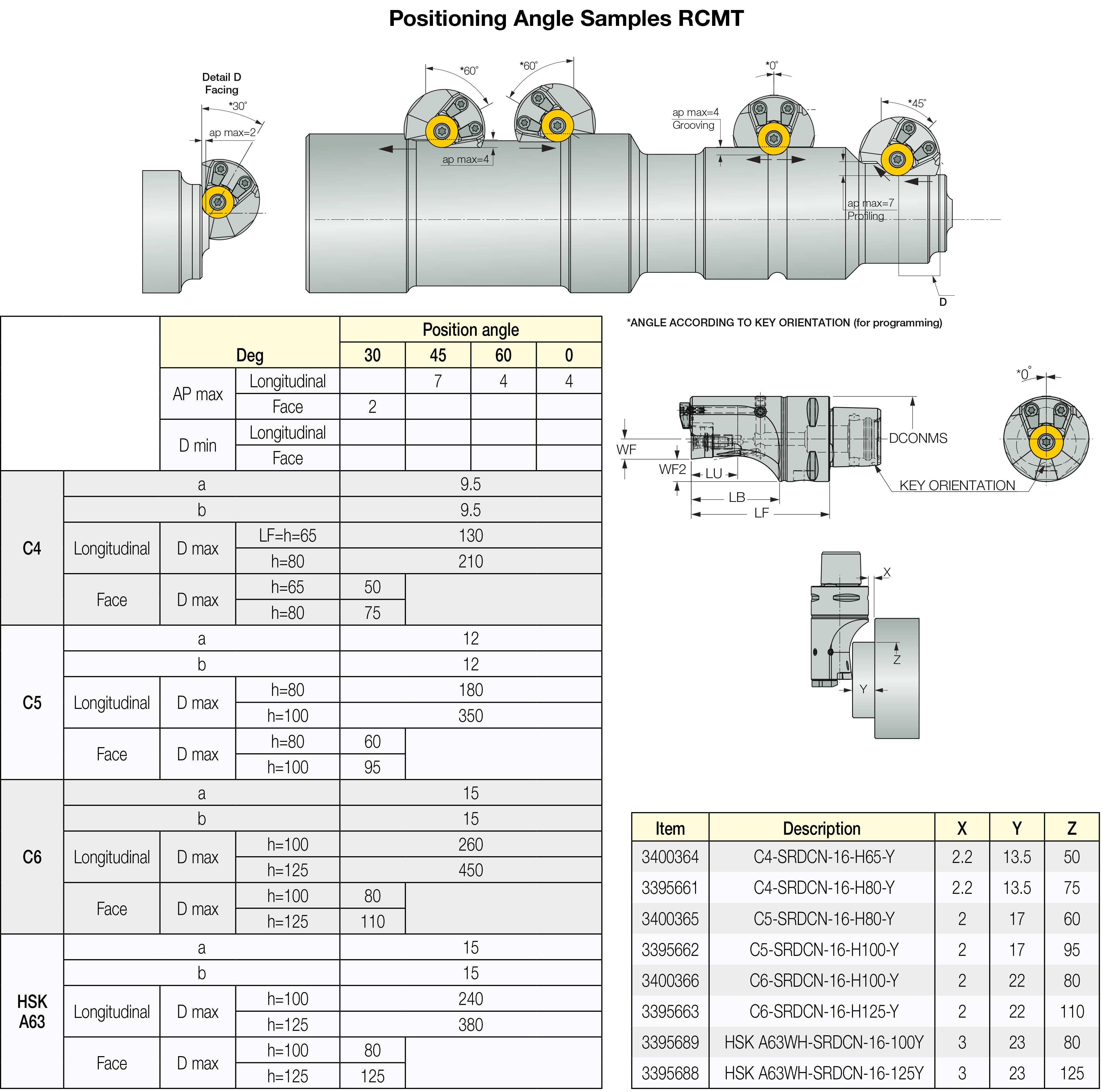

| Remarks | For Depth of cut vs. position angle examples click on More Info For user guide, see More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.1440
Name
General Indexable Turning Tools
FamilyName
C#-SRDCN-16-Y
BrandName
Iscar
