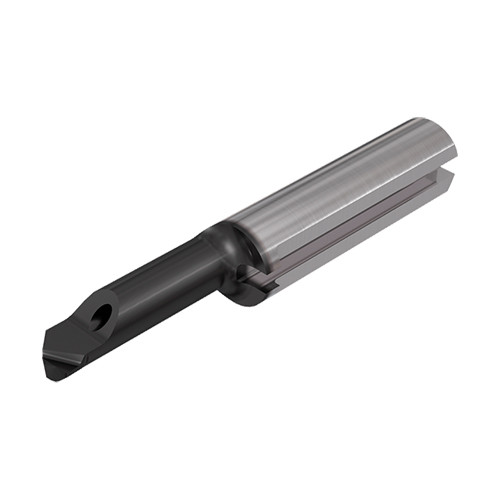

PICJ RT90D30R10-16 IC908
Inserts with inner coolant channel for internal turning and profiling, Dmin 2.8mm

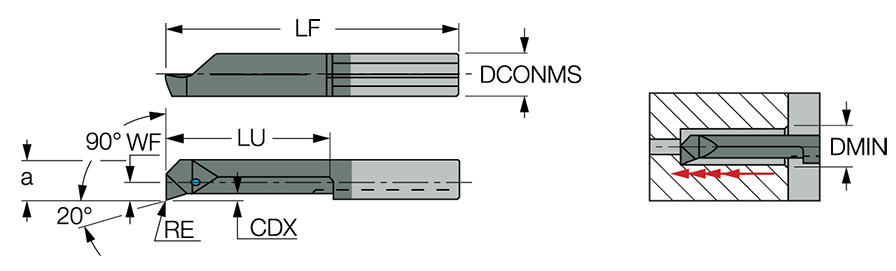

| Connection Diameter Machine Side (DCONMS) | 4 mm | Corner Radius (RE) | 0.1 mm |
| Minimum Bore Diameter (DMIN) | 2.8 mm | Cutting Depth Maximum (CDX) | 0.2 mm |
| Functional Length (LF) | 30 mm | Functional Width (WF) | 0.6 mm |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 14 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Front End Width (a) | 2.6 mm | Unit | M |
Product Features
| Family Description | Inserts with inner coolant channel for internal turning and profiling, Dmin 2.8mm | FamilyName | PICJ R/LT90 |
| Remarks | PICJ items are suitable for PICCO/MG PCO, PICCO ACE, SC-PICCO type holders only | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0060
Name
Solid Boring Bars
FamilyName
PICJ R/LT90
BrandName
Iscar
