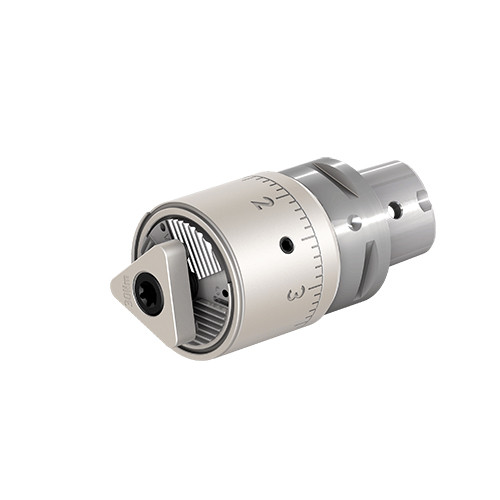

BHR3-C3X55-D40-50-14
Three cutting edges roughing boring head with simultaneous diameter adjustment

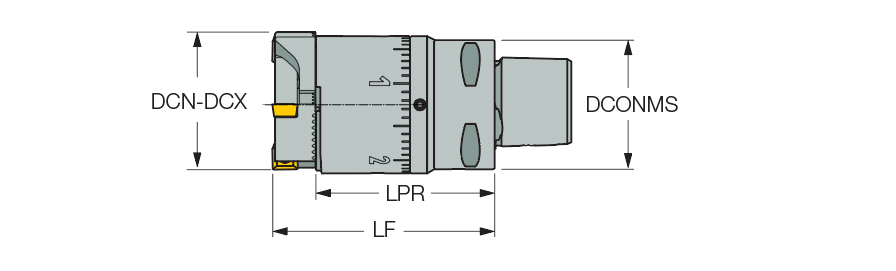

| Cutting Diameter Minimum (DCN) | 40 mm | Tool Type | MB Rough boring heads |
| Cutting Diameter Maximum (DCX) | 50 mm | Measurement Type | Metric |
| Functional Length (LF) | 55 mm | Rotational Speed Maximum (RPMX) | 10000 rpm |
| Body Diameter (BD) | 34 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Unit | M |
Product Features
| Family Description | Three cutting edges roughing boring head with simultaneous diameter adjustment | COO | Italy |
| Remarks | Verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
Weight per item
0.3660
