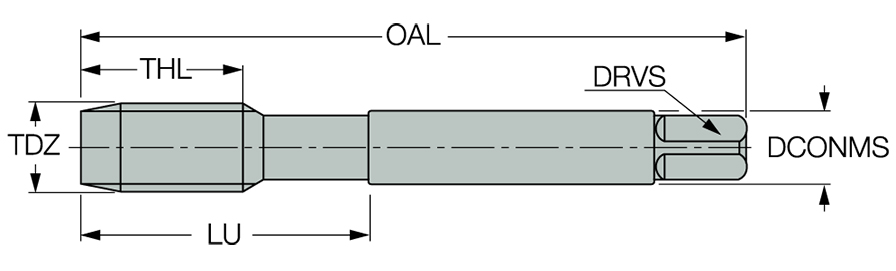

| Thread Diameter Size (TDZ) | M2.5 | Tool Type | Machine Blind Hole Taps |
| Thread Pitch (TP) | 0.45 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Grade | PMTI |
| Thread Cutting Part Length (THL) | 9 mm | Application | | Deep Hole with Short Thread | Taps for Deep Blind Hole | Taps for Short Blind Hole | |
| Connection Diameter Machine Side (DCONMS) | 2.8 mm | Body Material | HSS |
| Flute Count (NOF) | 3 | Drive Size (DRVS) | 2.1 mm |
| Flute Helix Angle (FHA) | 40 Degrees | Thread Size | M2.5 × 0.45 |
| Standard | DIN 371 | Unit | M |
Product Features
| COO | Hungary |
Shipping Info
Weight per item
0.0040
