TPGN M-8X1.25-A HEDLC

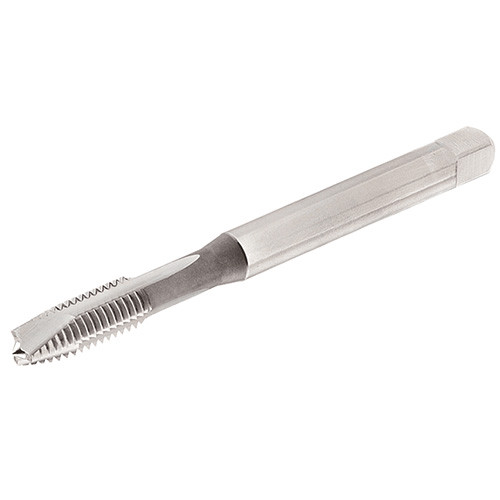

DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Aluminum

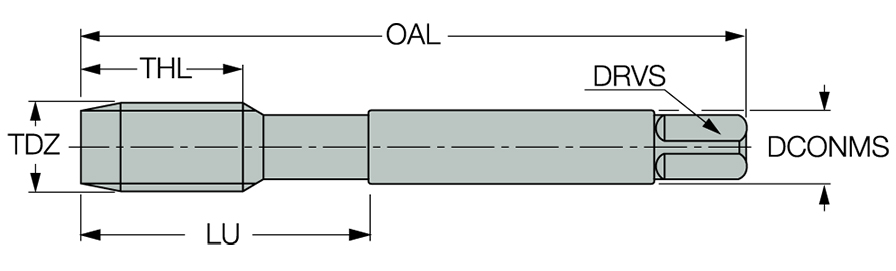

| Thread Size | M8 × 1.25 | Connection Diameter Machine Side (DCONMS) | 8 mm |
| Thread Diameter Size (TDZ) | M8 | Thread Cutting Part Length (THL) | 18 mm |
| Thread Pitch (TP) | 1.25 mm | Drive Size (DRVS) | 6.2 mm |
| Usable Length (LU) | 35 mm | Measurement Type | Metric |
| Overall Length (OAL) | 90 mm | Grade | HEDLC |
| Flute Count (NOF) | 3 | Body Material | HSS |
| Tool Type | Machine Blind Hole Taps | Unit | M |
| Application | | Taps for Deep Through Hole | Taps for Short Through Hole | |
Product Features
| Family Description | DIN 13 HSSE 5% Co Gun Point Machine Taps - ISO Metric Coarse Threads for Machining Aluminum | COO | Hungary |
Shipping Info
Weight per item
0.0320
