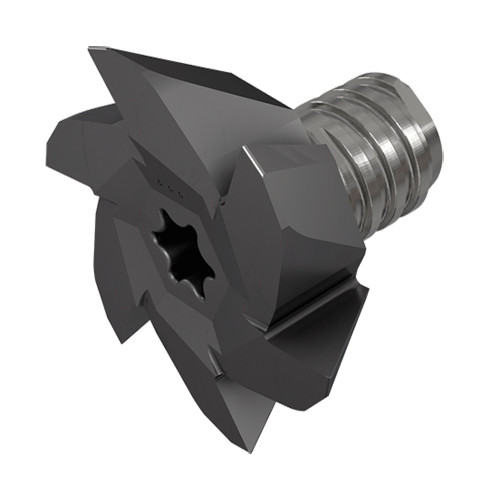

MM TS225-45D-06T08 IC908
Interchangeable solid carbide dovetail groove milling heads.

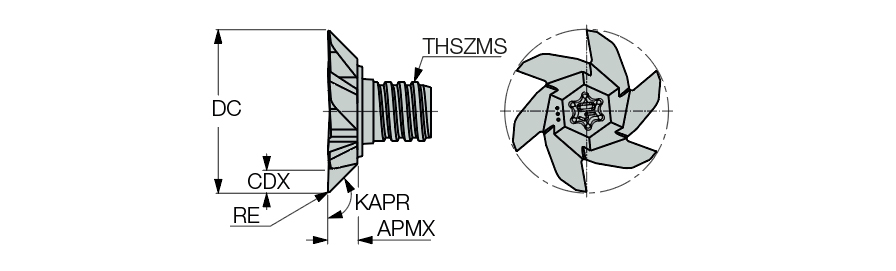

| Application | | Chamfering & Bottom Deburring | Side Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 22.5 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 135 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Corner Radius (RE) | 0.2 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid chamfering endmills |
| Cutting Depth Maximum (CDX) | 3.48 mm | Body Material | Carbide |
| Cutting Width (CW) | 3.7 mm | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide dovetail groove milling heads. | FamilyName | MM Dovetail |
| Remarks | Use carbide shanks for groove milling heads | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0235
Name
Solid End Mill Heads
FamilyName
MM Dovetail
BrandName
Iscar
